SWIMMING SCOREBOARD TIMING SYSTEMS

LEDECH — Swimming Timing Systems: Videoboard, Scoreboards, Touchpads, Timer Console

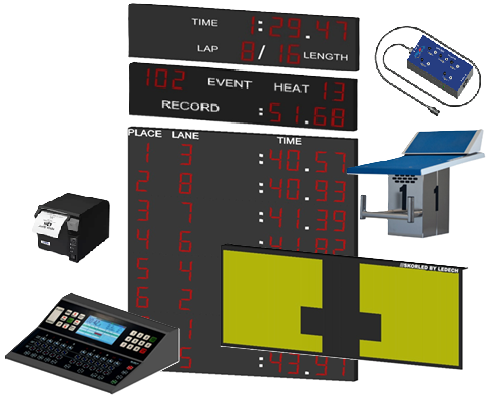

LEDECH Swimming Timing System

LEDECH Swimming Timing System delivers a World Aquatics (formerly FINA) / LEN compliant architecture designed for elite championships, university programs, and municipal pools.

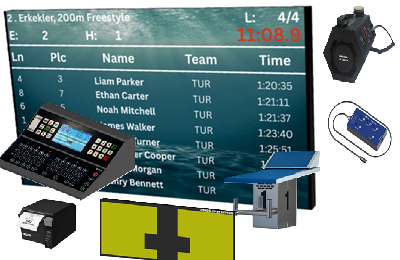

The field-ready suite integrates lane & event scoreboards (SKL-SPL-10, SKL-SLP-10), videoboard, timer console (SKL-SWC-V2), touchpads (ST-2490-F, ST-1990, ST-1590), starting blocks, and a race starter into a single professional platform.
Native Splash Meet Manager integration streamlines entries, heat/seed management, live results, and official reporting with minimal operator workload.
In the timing architecture, touchpads are the primary measurement source; if contact is missed or a pad event is compromised, Back-up Buttons provide a secondary (redundant) time stamp to validate finishes and splits under World Aquatics/FINA procedures.
This redundancy strategy supports referee and jury review with traceable, standards-aligned data reconciliation.
High-visibility LED aquatics scoreboards present event–heat data, total time, splits, lap/distance, and record indicators with low latency.
Modular cabling via lane box & deck plates (SKL-LB-V1, SKL-DP-V1) and wall junction box (SKL-WJB) accelerates installation, simplifies service, and future-proofs expansions.
Rugged, water- and chemical-resistant construction ensures stable measurement, high uptime, and low total cost of ownership.
On-site thermal printing (SKL-EPS-T70), remote monitoring, and standard data formats optimize meet operations and post-event workflows.
LEDECH unites compliance, accuracy, and operational reliability, helping you rank for searches like swimming timing system, aquatics scoreboard, electronic timing, touchpad, starting blocks, and race starter.

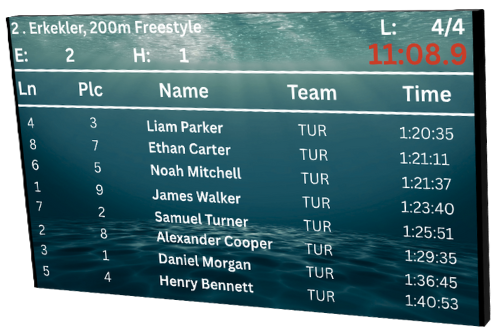

Swimming Videoboard

Swimming Videoboard is a World Aquatics (formerly FINA) compliant LED platform that delivers low-latency live video, scoring overlays, and sponsor content on a single display. High brightness and precise pixel-pitch options for indoor/outdoor use—combined with HDR processing—render results tables, instant splits, and record alerts with exceptional clarity. LEDECH’s proprietary software automates timing-data integration, broadcast graphics, replay, and results publishing, enabling flawless meet operations. Modular cabinets, IP-rated protection, and redundant power/data architecture provide championship-grade reliability and fast serviceability for modern swimming timing systems.

Swimming Scoreboard

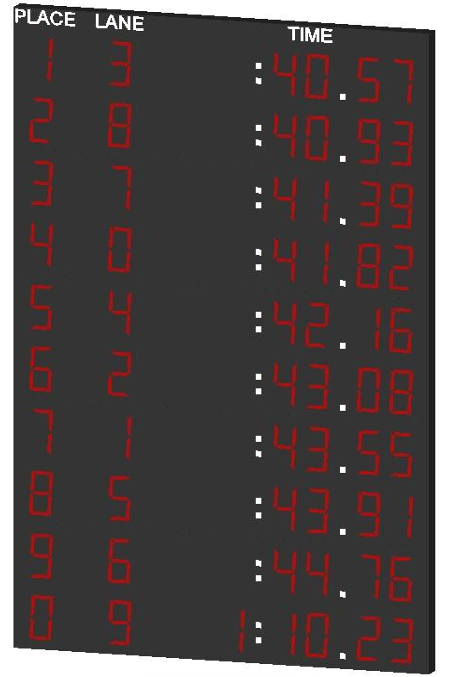

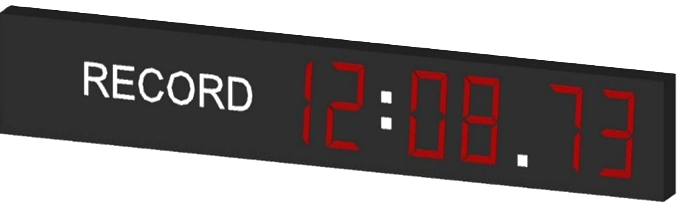

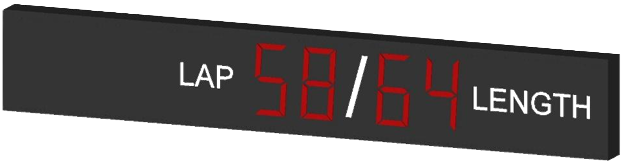

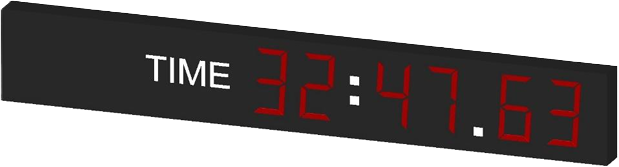

Numeric Scoreboards deliver World Aquatics (formerly FINA) / LEN–compliant lane, event–heat, time, lap, and record displays with low latency and high visibility. Models such as SKL-SPL-10 / SKL-SLP-10 (lane), SKL-STM-1L (time), SKL-SLL-1L (lap), and SKL-SREC-1L (record) feature anti-glare LED modules, wide viewing angles, and reliable data synchronization. Available in portable and fixed-mount configurations, they adapt quickly to any pool architecture. Seamless integration with LEDECH software and Splash Meet Manager enables instant splits/results and automated page cycling for professional swimming timing system operations.

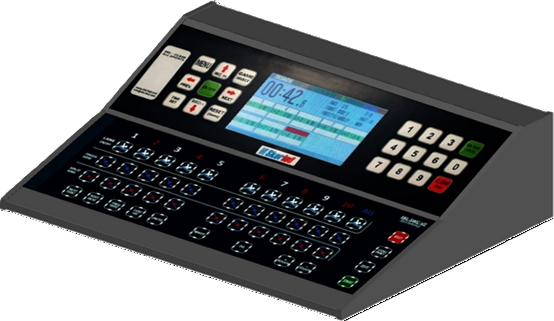

Timer Console

Timer Console (SKL-SWC-V2) is a World Aquatics (formerly FINA) / LEN–aligned control unit engineered for high-accuracy, deterministic timestamping and centralized management of all meet I/O. Its hardware timing core, disciplined clock, and robust synchronization architecture deliver the precision required for elite swimming competitions, where milliseconds determine medals. Touchpads serve as the primary timing source, while Back-up Buttons capture redundant time stamps to validate finishes and splits under officiating review. Accuracy is documented through calibration by ISO/IEC 17025–accredited laboratories with independent verification reports available for compliance audits. Native integration with Splash Meet Manager automates entries, heat seeding, live results, and official reports—optimizing meet operations. Designed with modular I/O, protected connectors, remote monitoring, and fast service access, SKL-SWC-V2 is a professional choice for swimming timing system, electronic timing, and aquatics scoreboard deployments.

Touchpad

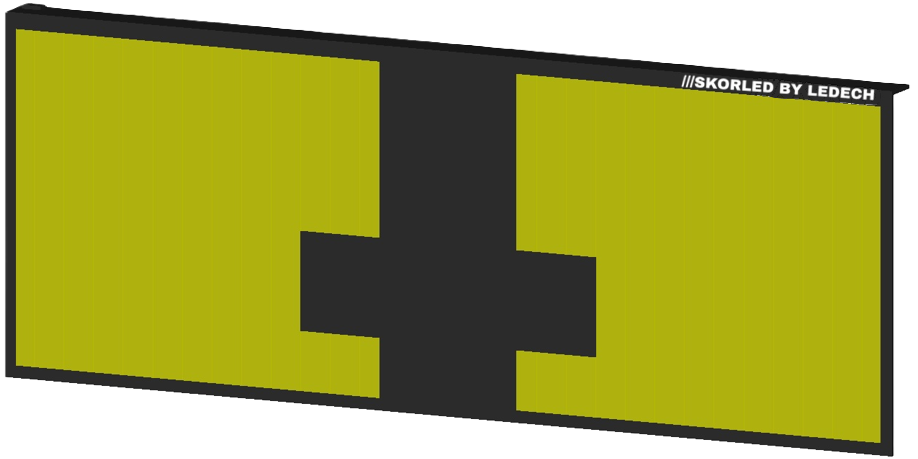

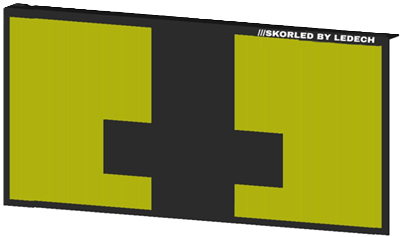

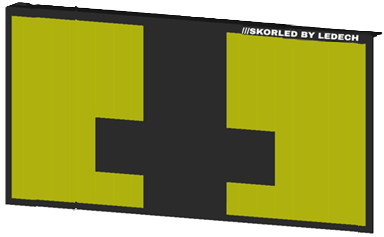

Touchpads (ST-2490-F, ST-1990, ST-1590) are the primary timing sensors in our swimming timing system, capturing split and finish contacts with high precision in full compliance with World Aquatics (formerly FINA) / LEN requirements. Rugged, chemical- and water-resistant construction with anti-slip surface and protected connectors ensures stable measurement in demanding pool environments. Native integration with the LEDECH Timer Console (SKL-SWC-V2) and Splash Meet Manager streams verified data to aquatics scoreboards in real time. In rare missed-contact scenarios, Back-up Buttons provide redundant time stamps to confidently validate results.

Starting Blocks (Take-off Platforms)

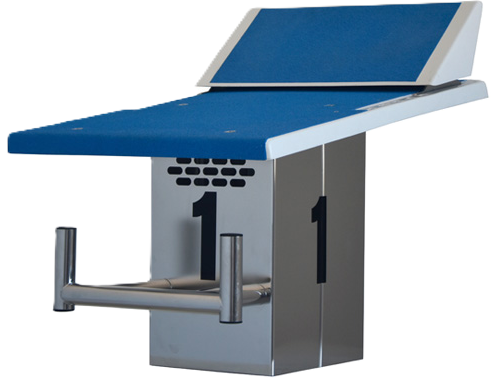

Starting Blocks line is World Aquatics (formerly FINA) / LEN compliant, offered in 40 cm (SKL-SBN-40: non-false start; SKL-SBF-40: false-start) and 70 cm stepped (SKL-SBN-70: non-false start; SKL-SBF-70: false-start) configurations.

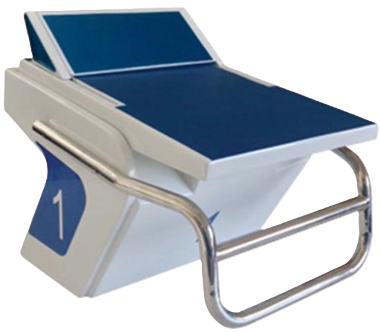

Professional variants SKL-RTS-V1 (reaction/false-start) and SKL-TS-V1 (standard) integrate with the Timer Console (SKL-SWC-V2) and Splash Meet Manager for traceable false-start logging and fast official reporting.
Corrosion-resistant chassis, high-grip top, and adjustable foot plate deliver reliable performance for starting blocks, false start detection, and swimming timing system deployments.

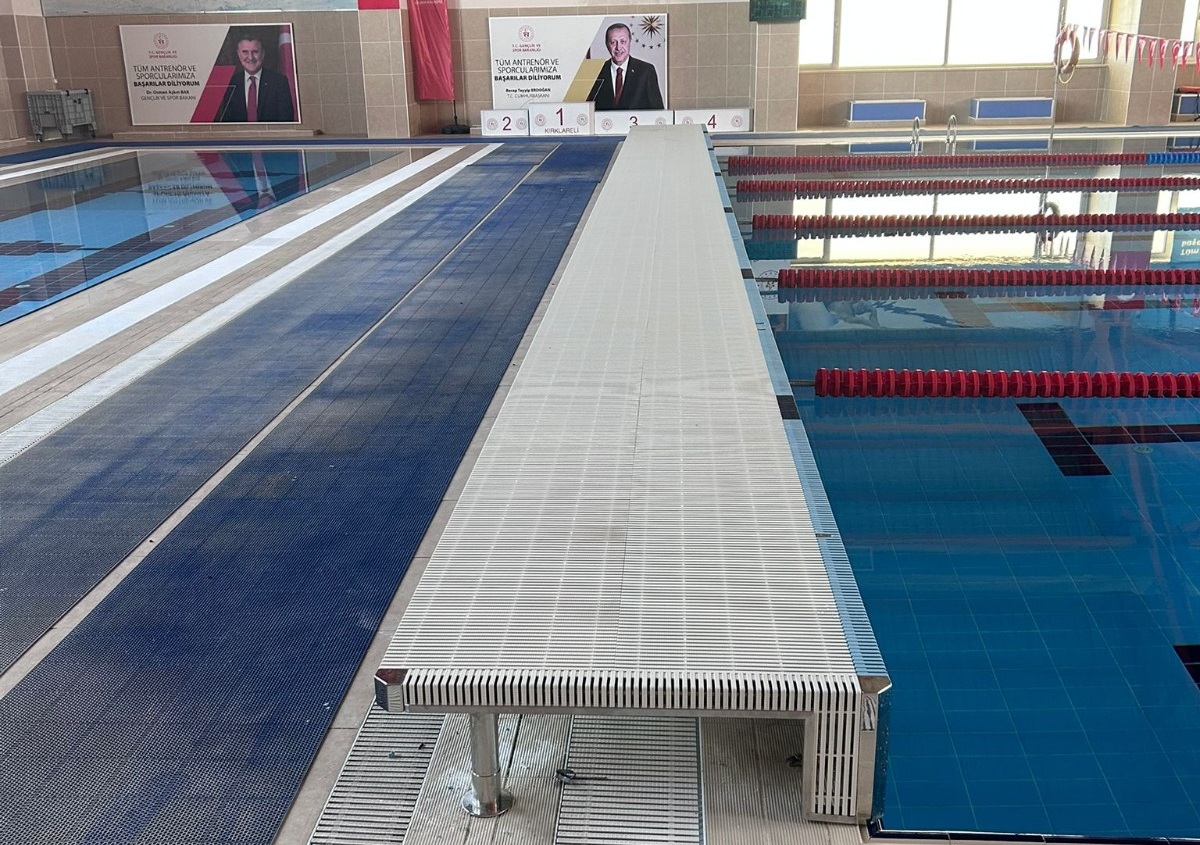

Riser (Open Face) Platforms

Riser (Open Face) Platform is a high-rigidity pedestal engineered for Olympic-level competitions, compatible exclusively with 40 cm starting block tops. Its open-face architecture enables fast cable routing and service access, while a wide-base anchoring system, stainless hardware, and a corrosion-resistant chassis deliver vibration-free, secure mounting. Compatible models: SKL-SBN-40 (non-false start), SKL-SBF-40 (false-start detection), SKL-RTS-V1, and SKL-TS-V1. Built to World Aquatics (formerly FINA) / LEN standards, it provides stability, durability, and audit-ready documentation for professional swimming timing system deployments.

Riser (Open Face) platform for 40 cm starting blocks

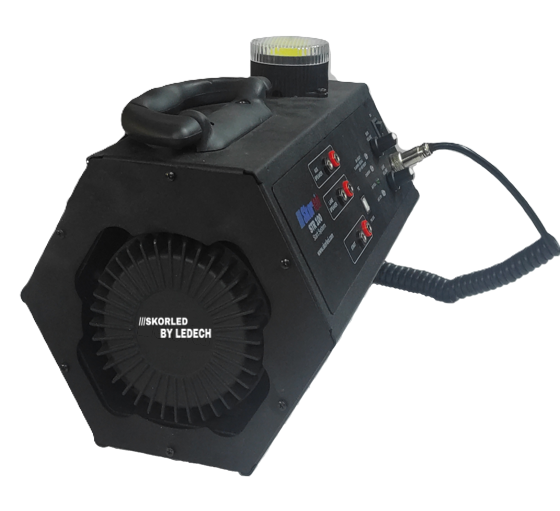

Race Starter

Race Starter (STR-100) delivers World Aquatics (formerly FINA) / LEN–compliant starts with low-latency acoustic signal and high-intensity flash. Operation uses onboard start/status buttons and an integrated microphone, with triggering via the Timer Console (SKL-SWC-V2) or, per site topology, through Lane Box (SKL-LB-V1) / Deck Plates (SKL-DP-V1). EMI protection, adjustable audio/light levels, and reliable wired communication ensure start integrity and championship-grade continuity for professional swimming timing system deployments.

Lane Box / Deck Plates

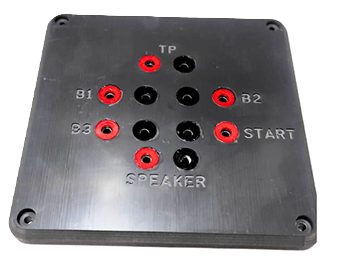

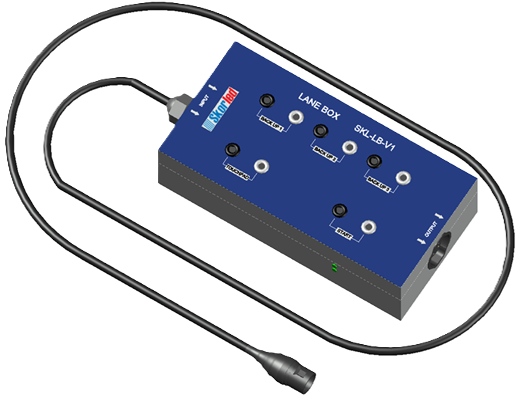

Lane Box / Deck Plates form the lane-level I/O backbone of a professional swimming timing system: Lane Box (SKL-LB-V1) is a portable field unit, while Deck Plates (SKL-DP-V1) provide an embedded in-deck solution. Both transmit signals from touchpads, the Race Starter (STR-100), and Back-up Buttons (SKL-BB) to the Timer Console (SKL-SWC-V2) with high precision and low latency, ensuring data integrity under EMI-hardened, IP-rated, sealed-connector design. Modular cable management and service access enable fast commissioning, scalability, and long-term reliability across diverse pool architectures.

Wall Junction Box

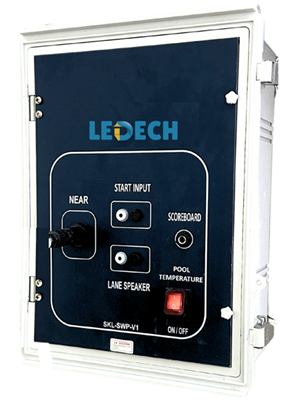

Wall Junction Box (SKL-WJB) is the centralized node for embedded installations, aggregating touchpad, Race Starter (STR-100), and Back-up Button (SKL-BB) signals and delivering them to the Timer Console (SKL-SWC-V2) with low latency, high precision, and EMI-shielded, IP-rated integrity. This fixed solution streamlines cable management and ensures long-term reliability for professional swimming timing system deployments.

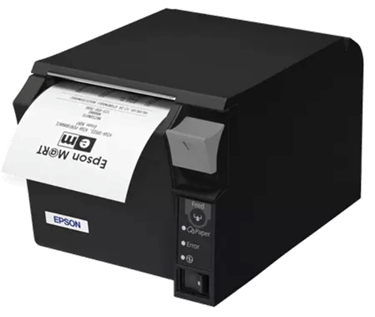

Thermal Printer

Thermal Printer (SKL-EPS-T70) enables instant, accurate printing of official results, protocols, and logs for professional swimming timing system operations, with automated formatting via the Timer Console (SKL-SWC-V2) and Splash Meet Manager. In case of a communication outage, up to 500 logs are queued in console memory, the operator is notified, and printing resumes losslessly from the queue as soon as the link is restored.

Back-up Buttons

Back-up Buttons (SKL-BB) provide lane-end manual triggers that generate redundant time stamps for finishes and splits—ensuring result validation whenever a touchpad contact is missed, in line with World Aquatics (formerly FINA) / LEN procedures. EMI-shielded, IP-rated hardware and traceable logging deliver reliable evidence for officiating and seamless integration within professional swimming timing system workflows.

SYSTEMS

EMBEDDED SYSTEMS

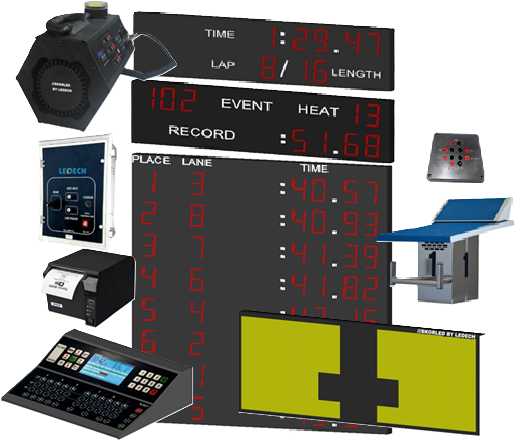

Designed for permanent installations and elite competition venues, embedded swimming timing systems use the Deck Plate (SKL-DP-V1) and Wall Junction Box (SKL-WJB) chain to ensure low noise and superior signal integrity. Cabling and terminations are organized, serviceable, and protected at poolside for long-term reliability. Fully compatible with Touchpads (ST-2490-F), Race Starter (STR-100), and the Swimming Controller (SKL-SWC-V2), the system delivers deterministic, real-time data flow. The result is stable, repeatable performance across seasons, ideal for Olympic and championship pools.

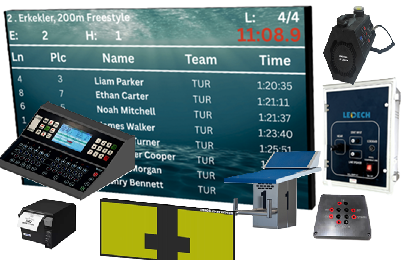

VIDEOBOARD SOLUTIONS



 Embedded LED videoboards present every race metric at high legibility—Event/Heat, lanes, ranks, times/splits, records, plus country codes and swimmer names. Operators can tailor colors, fonts, and sizes to pool sightlines and branding needs. Tight sync with meet management and SKL-SWC-V2 enables broadcast-quality visuals and sponsor integrations. Templates streamline multilingual layouts and event themes.

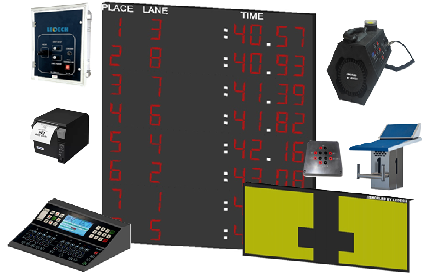

NUMERIC SOLUTIONS

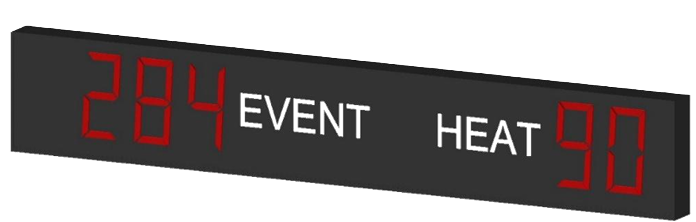

 The Race Scoreboard (SKL-SPL-X) scales its line count to your total lanes, showing heats, times, and placements for quick, distraction-free reading. Embedded topology preserves low latency and high reliability under heavy meet schedules. Add modular layers—Event–Heat + Record (SKL-SEHR-2L) and Lap–Length–Time (SKL-SLT-2L)—to enrich information without clutter. High brightness and wide viewing angles keep officials and spectators aligned throughout the session.



PORTABLE SYSTEMS

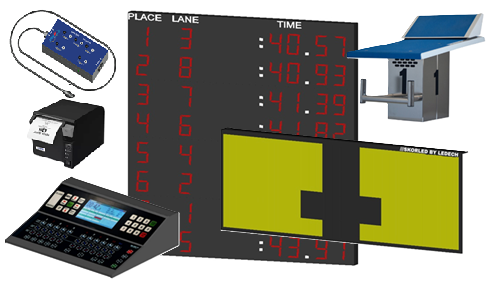

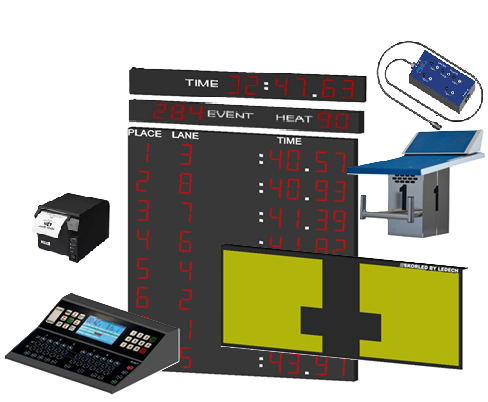

Built for multi-site use, temporary events, and venues with infrequent meets, portable systems follow a Lane Box (SKL-LB-V1) topology for true plug-and-play deployment. They minimize civil works and shorten setup/tear-down while maintaining timing accuracy. Fully interoperable with Touchpads, STR-100, and SKL-SWC-V2, they keep real-time precision across changing pools. Ideal for schools, regional leagues, seasonal competitions, and facilities that host races occasionally.

VIDEOBOARD SOLUTIONS



Portable videoboards install and synchronize rapidly, delivering rich graphics with Event/Heat, lane results, record alerts, and announcements. Operators load preset profiles to adjust color, font, and point size on the fly. SKL-SWC-V2 and meet management integration keep data streaming smoothly with minimal latency. Sponsor logos and team branding are supported via ready-to-use templates.

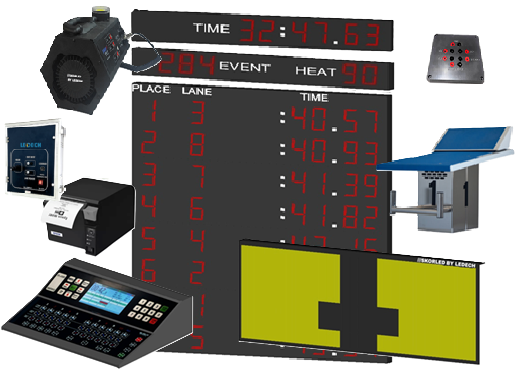

NUMERIC SOLUTIONS

Portable Race Scoreboard kits provide a clean, cost-effective display that scales by lane count. Add SEHR-2L (Event/Heat + Record) and SLT-2L (Lap–Length–Time) to layer key information; new records can flash for instant confirmation. Quick-mount hardware and rugged enclosures ensure durability and repeatable setups. A reliable choice for school meets, tours, and low-frequency race venues.
