Maximum storefront visibility. Our double-sided Round Shaped LED Screen is a decorative yet robust digital sign designed for façades, high streets, malls, and corporate entrances. With high brightness, IP65 protection, and cloud-based content management, your messages stay vivid day and night.
Double-sided, 360° impact: Two active faces capture foot and vehicle traffic in both directions.
Daylight readability: Outdoor configuration delivers >4,500 nit typical brightness.
Weather protection: IP65-rated front side for rain and dust resistance.
Easy installation & service: ~16 kg cabinet with wall/column bracket; front maintenance access.
Smooth motion: ≥1,920 Hz refresh for flicker-free video and animations.
Rich media support: JPG/PNG/GIF and MP4 playback with playlists and scheduling.
Operational reliability: Energy-efficient, modular design with local parts and on-site service options.

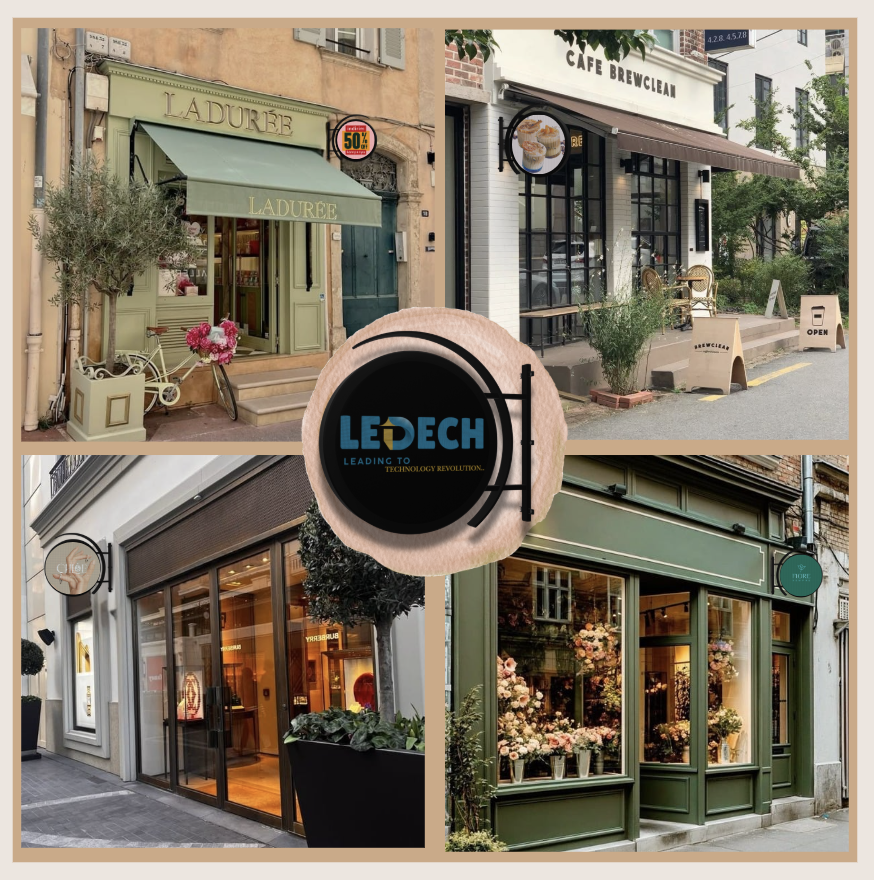

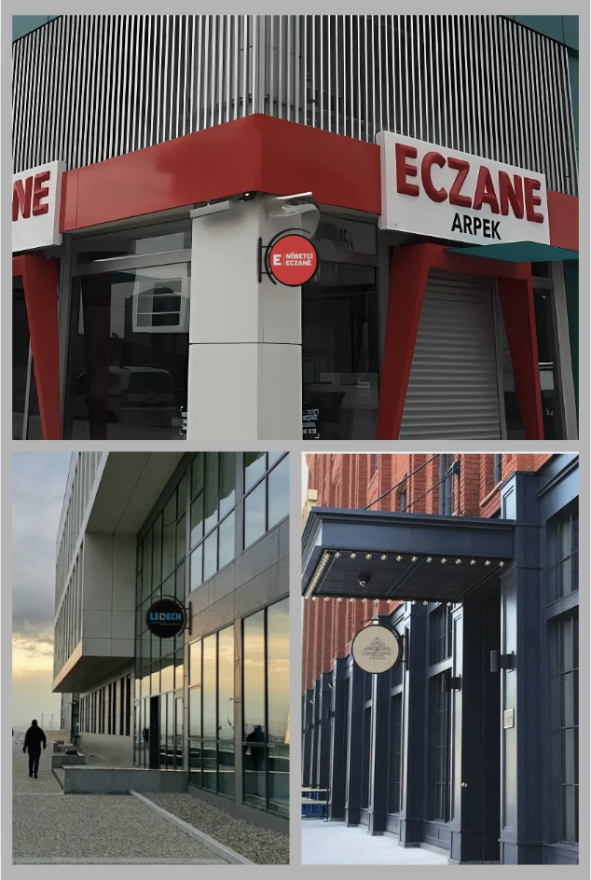

Retail & boutiques • Cafés & restaurants • Pharmacies & healthcare • Gyms & fitness • Hotels & malls • Corporate lobbies

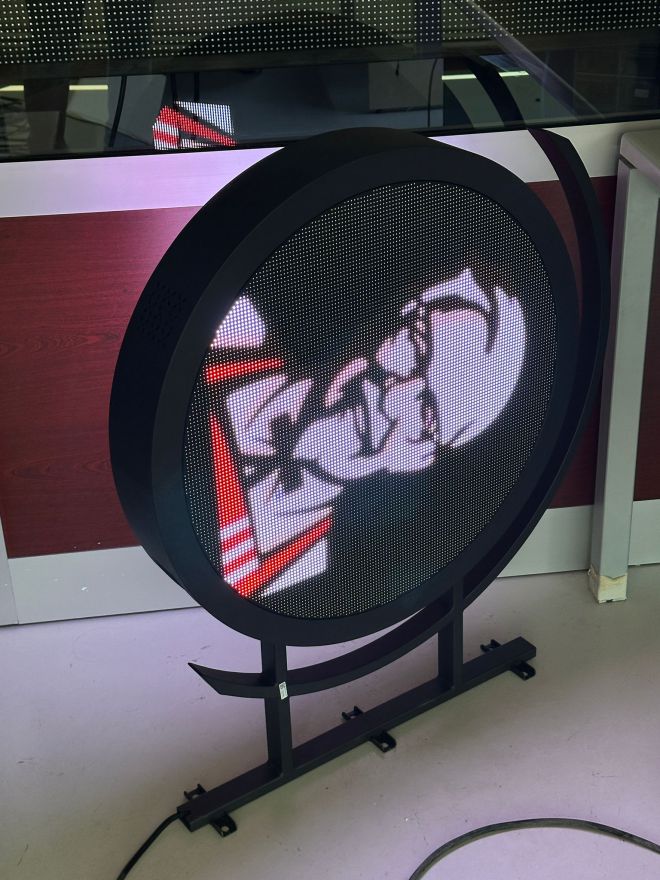

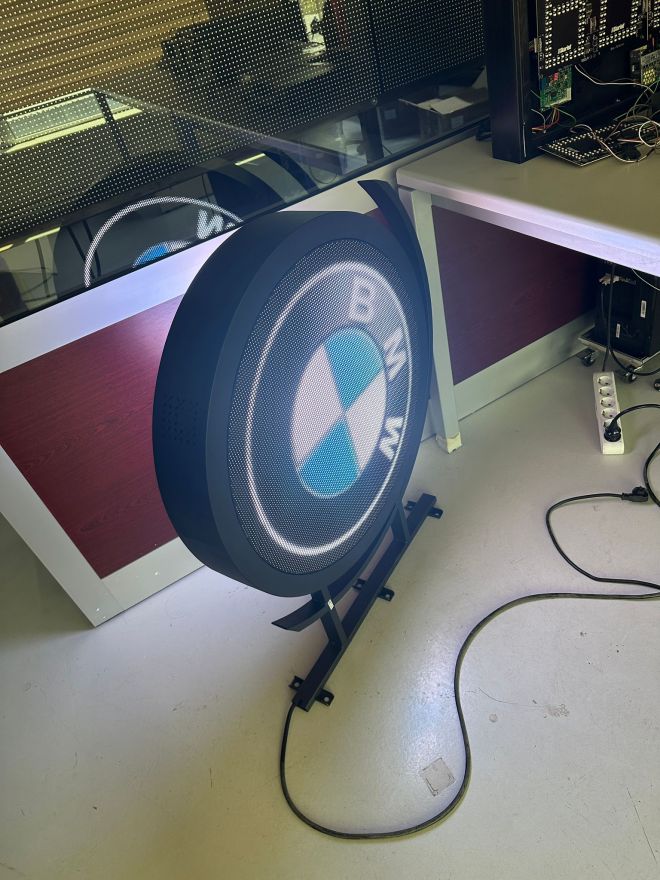

Form factor: Round shaped, double-sided active display
Cabinet: Slim metal body with decorative ring bracket
Standard diameters: Ø60–120 cm (custom sizes available)
Pixel pitch: Indoor P2.5–P6 / Outdoor P4–P8
Brightness: Indoor 800–1,500 nit / Outdoor 3,500–6,500 nit
Refresh rate: ≥1,920 Hz (camera-friendly)
Connectivity: Wi-Fi / LAN; 4G optional
Software: Cloud or on-prem CMS with remote updates & scheduling
Power: Smart power management, low consumption
Ingress protection: IP54–IP65 (model-dependent)
Serviceability: Front access
Mounting: Wall/column bracket, overhead suspension; anchored fixings
Warranty: Standard 2 years (extended maintenance optional)
| Specification | Value |
|---|---|
| Display faces | Double-sided round shaped active area |
| Image diameter | Ø600 mm |
| Outer size (W×H×D, typical) | ~915 × 680 × 145 mm |
| Pixel pitch | P4.8 mm |
| Brightness (typ.) | >4,500 nit |
| Viewing angle | ≈140° H / 140° V |
| Refresh rate | ≥1,920 Hz |
| Ingress protection | IP65 (outdoor) |
| Weight | ≈16 kg (cabinet) |
| Power consumption | Max ~300 W (double-sided), Avg ~150 W (double-sided) |
| Operating temp./humidity | –10°C to +50°C / 10–95% RH |
| Power input | AC 85–230 V |
| Media formats | BMP/JPG/PNG/GIF, MP4/MOV/AVI/FLV |
| Service access | Front |
Site survey & needs assessment – façade, viewing distance, sun path, power line
Configuration selection – pixel pitch, diameter, body color, connectivity (Wi-Fi/LAN/4G)
Production & installation – bracket fabrication, anchoring and electrical works
Content & training – CMS setup and ready-to-use templates
Warranty & service – standard 2 years; optional maintenance plan
Is it readable in direct sunlight?
Yes. Outdoor models provide high brightness and wide viewing angles for clear daytime visibility.
How much power does it use?
Typical planning: ~150 W average per double-sided unit, ~300 W at peak—depending on size and brightness.
How is servicing performed?
Front-maintenance design allows direct access to modules and power components—no rear clearance needed.
Is it weatherproof?
Outdoor configurations feature IP65 front protection against rain and dust.
